2207
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

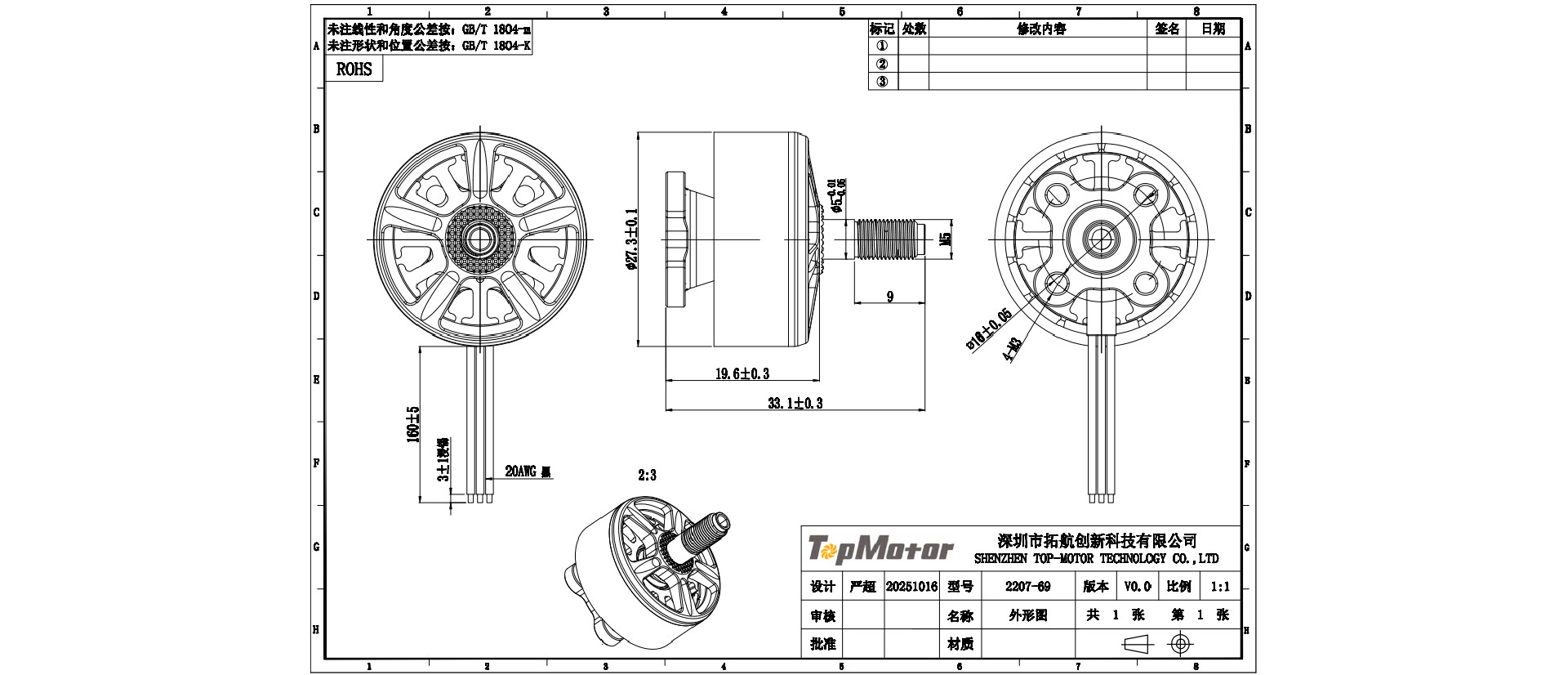

Outline Drawing
Basic Parameters
  • Motor Model : 2207
  • Motor Size：D27.3*19.6mm
  • Shaft-D：Ф5 -0.01/-0.06mm
  • Shaft-L：13.5±0.3mm
  • Wire Length：160±5mm
  • Weight：36.3±1g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1.13±0.3A
  • No load Speed：17014~18805RPM（1800KV）
  • Internal resistance：78.52mΩ±5%
  • Working Voltage：4-6S（3.7-4.2V/S）
  • KV Rating：1800KV
  • Propeller：5inch
  • Max Thrust：1.3kg
  • Flight Weight：1kg

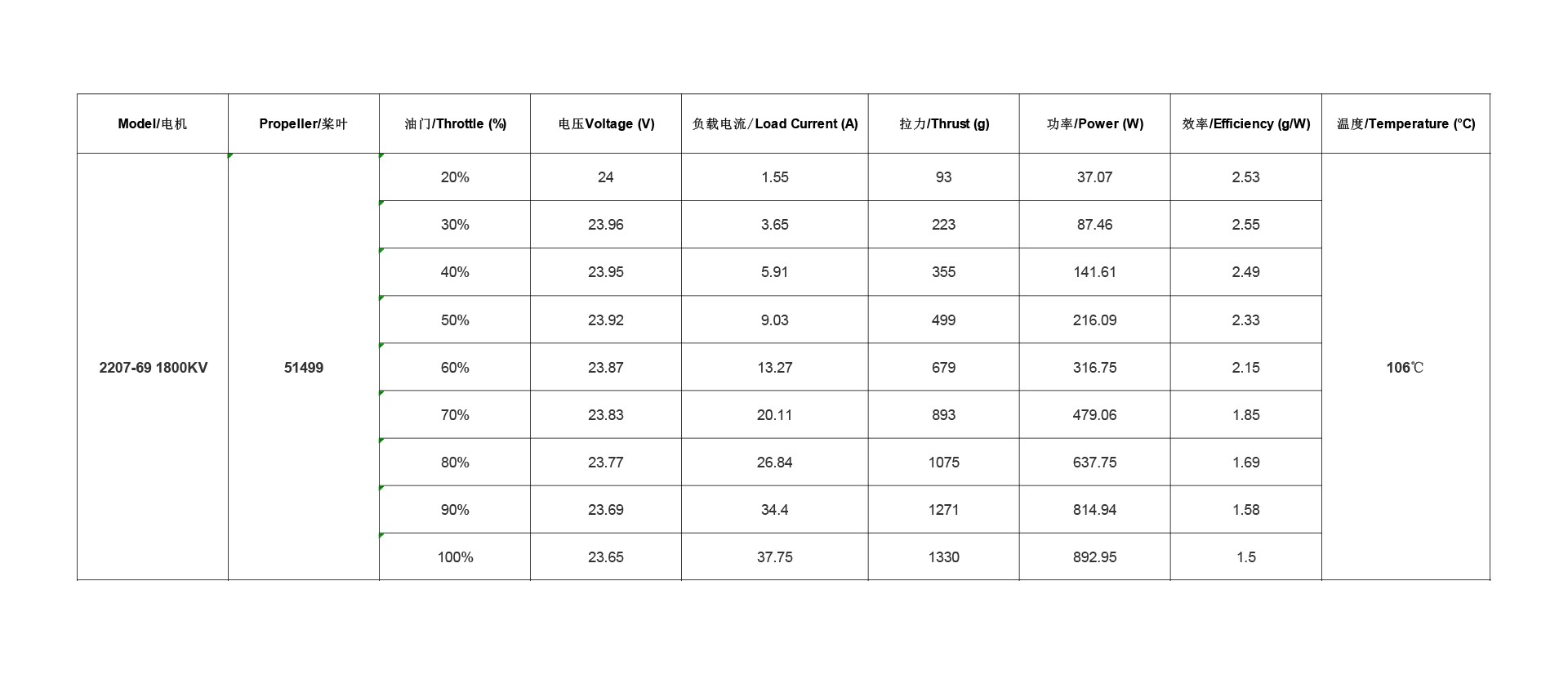

Testing Data
