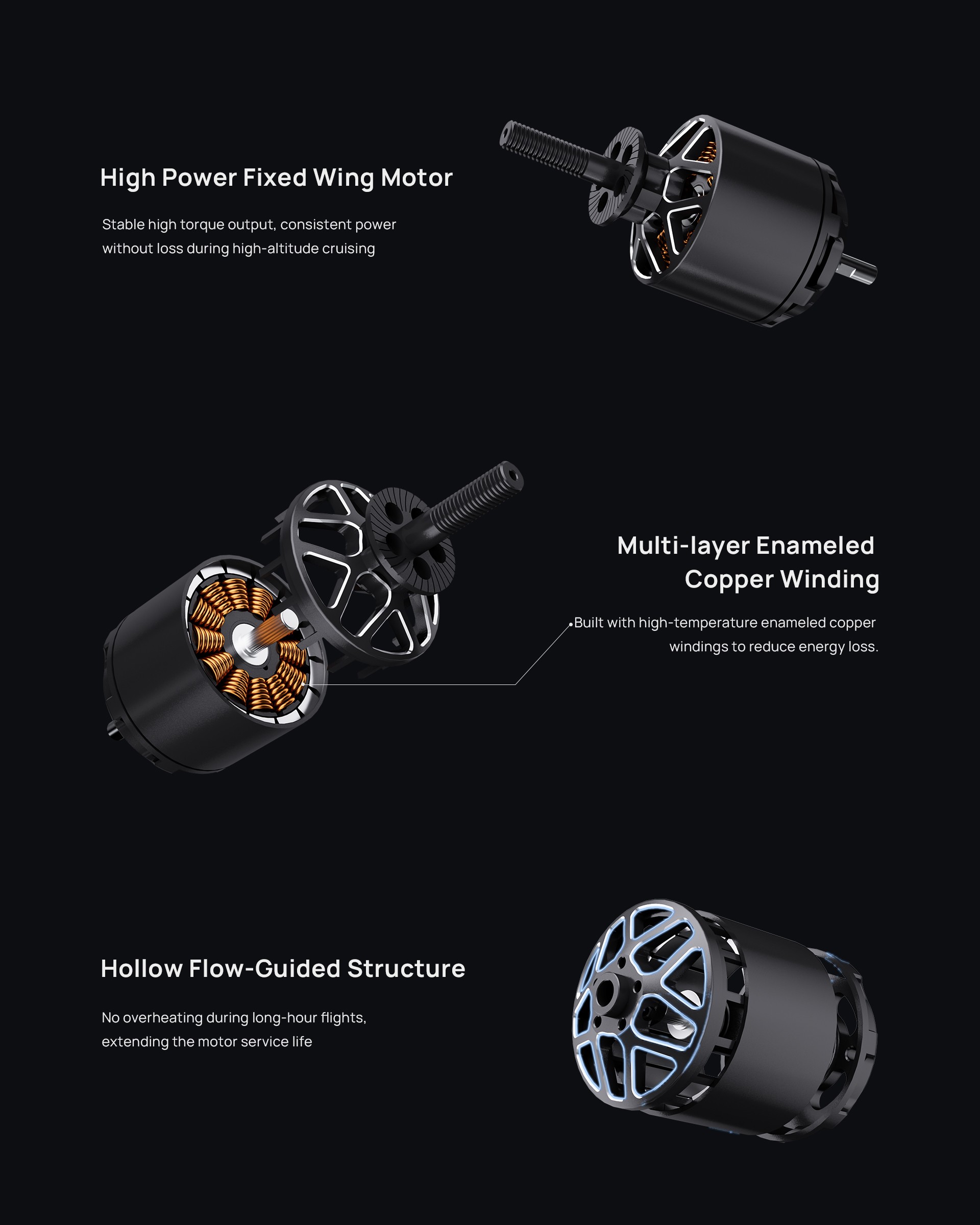

网页版详情-固定翼 拷贝.jpg

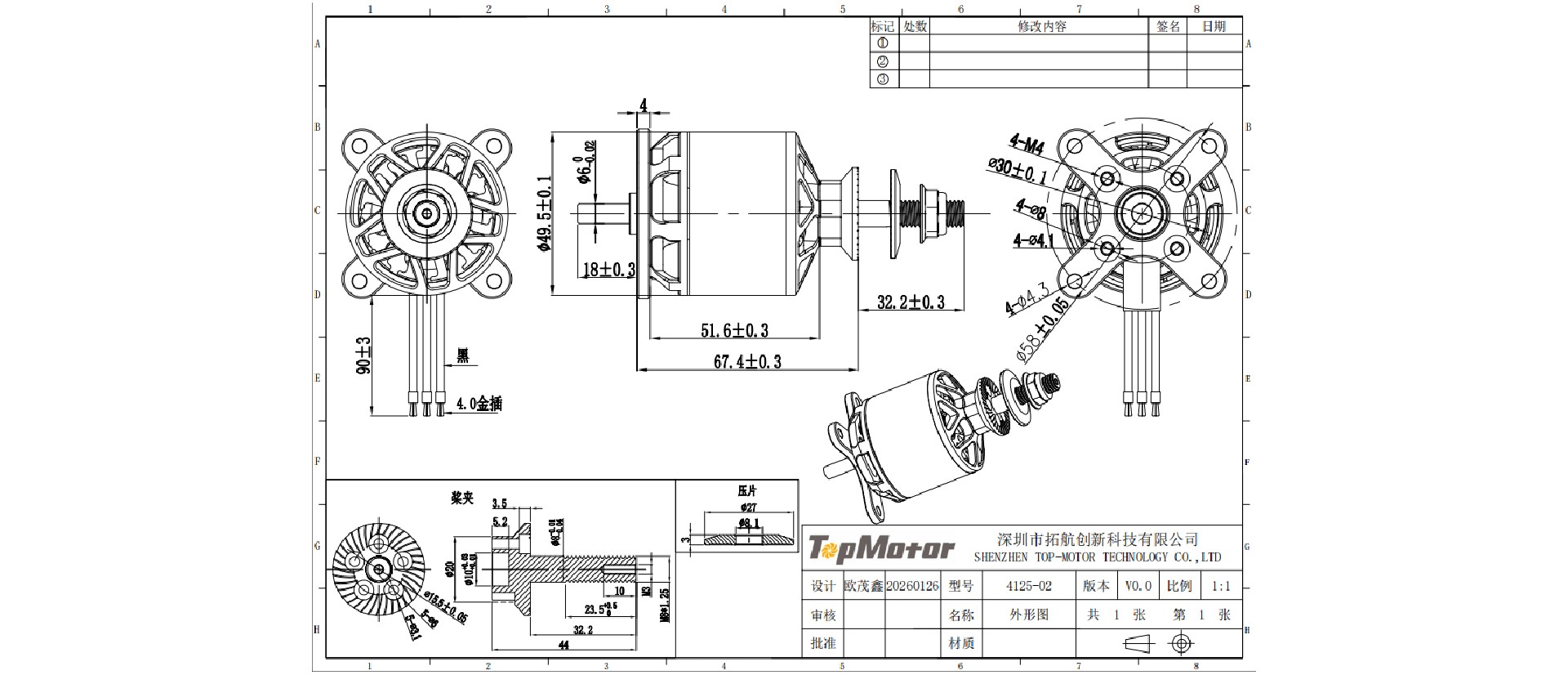

Outline Drawing
Basic Parameters
  • Model：4125
  • Motor Size：D49.5*51.6mm
  • Shaft-D：Ф6-0/-0.02mm
  • Shaft-L：18±0.3mm
  • Wire Length：90±3mm
  • Weight：346±12g（With wire）
Technical Parameters
  • No Load Voltage：20V
  • No load Current：2.8±0.3A
  • No load Speed：8930~9870RPM（470KV
  • Internal resistance：16.2mΩ±5%
  • Working Voltage：6-8S（3.7-4.2V/S）
  • KV Rating：470KV
  • Propeller：15/16/17inch
  • Max Thrust：7kg
  • Flight Weight：4-5kg

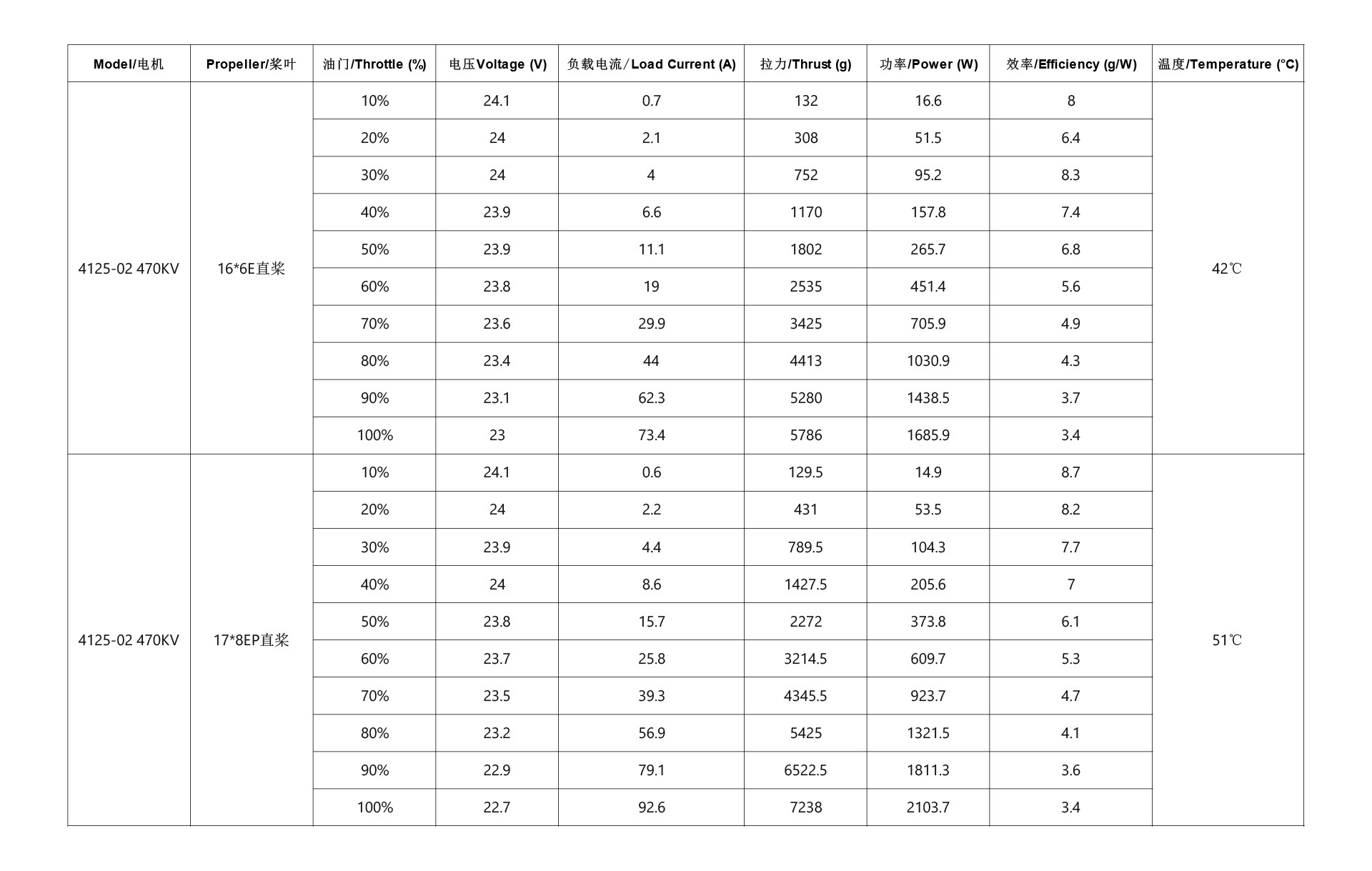

Testing Data
