4218
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

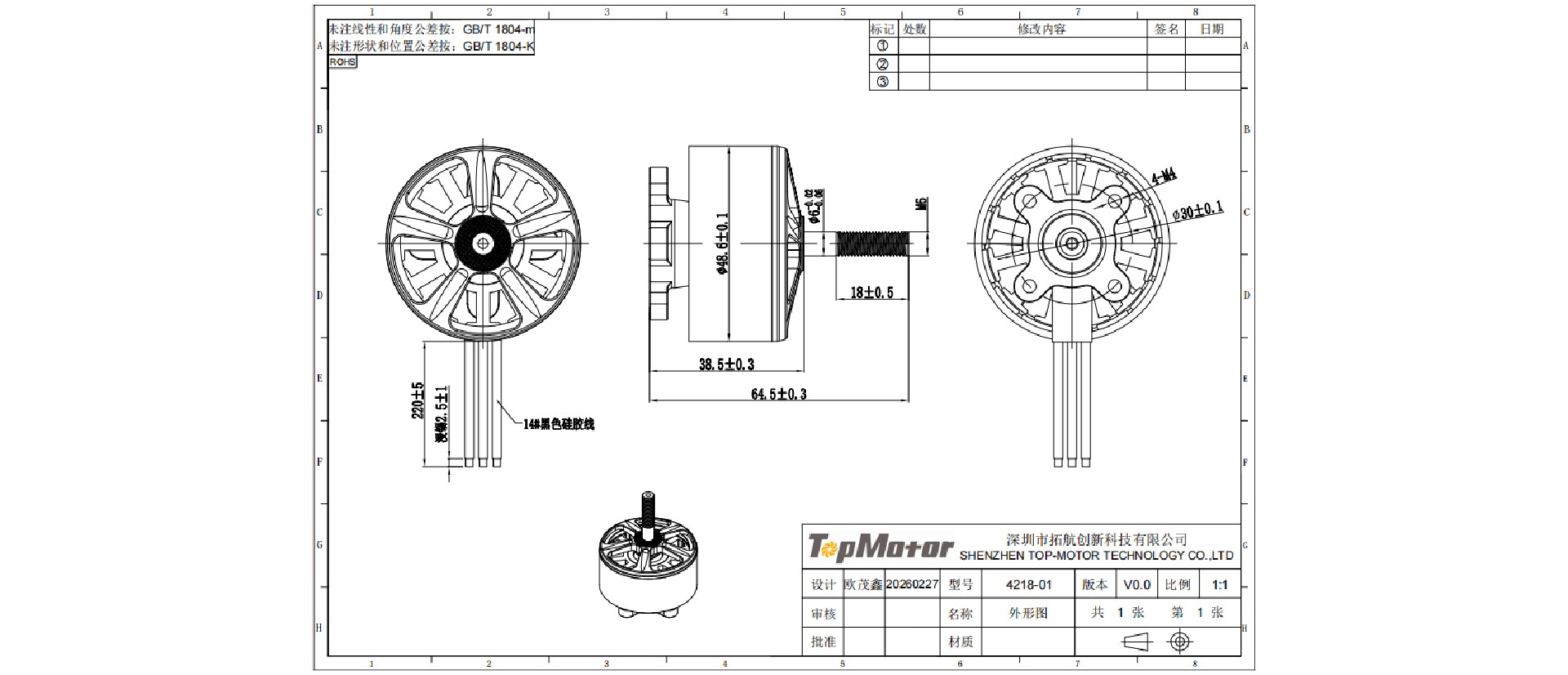

Outline Drawing
Basic Parameters
  • Model：4218
  • Motor Size：D48.6*38.5mm
  • Shaft-D：Ф6 -0.02/-0.06mm
  • Shaft-L：26±0.3mm
  • Wire Length：220±5mm
  • Weight：241.2±10g（With wire）
Technical Parameters
  • No Load Voltage：20V
  • No load Current：1.45±0.25A
  • No load Speed：7030~7770RPM（370KV）
  • Internal resistance：40.76mΩ±5%
  • KV Rating：370KV
  • Propeller：13/15inch
  • Max Thrust：7kg
  • Flight Weight：10kg

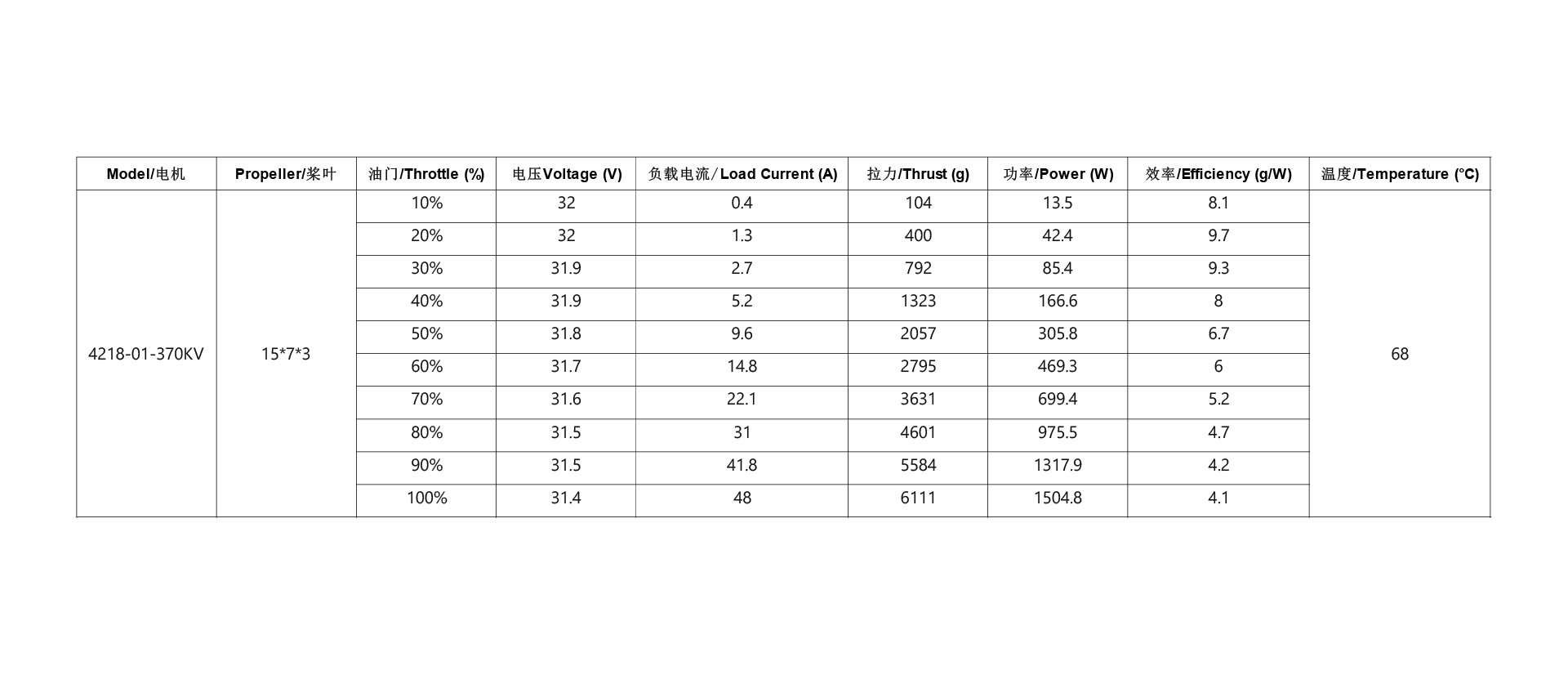

Testing Data
