3110
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

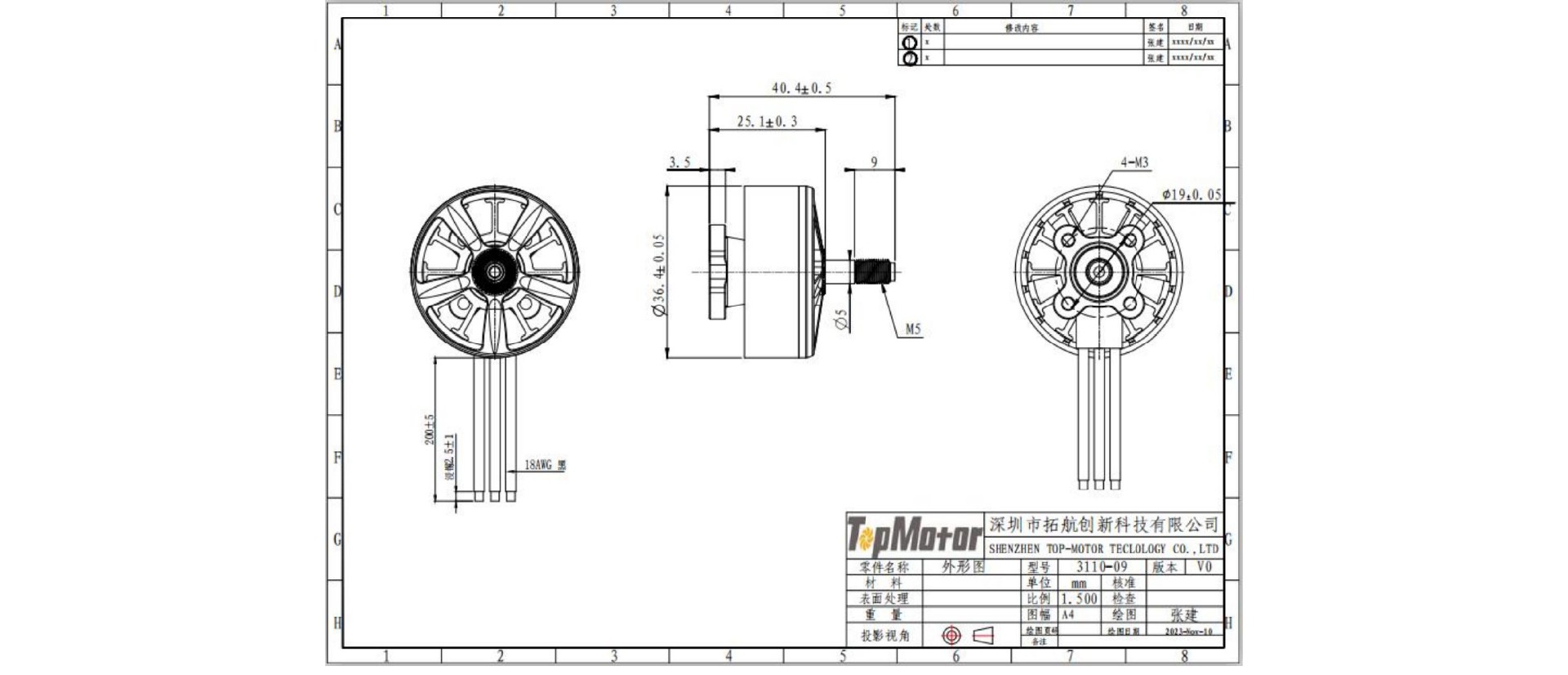

Outline Drawing
Basic Parameters
  • Model：3110
  • Motor Size：D36.4*25.1mm
  • Shaft-D：Ф5 -0/-0.02mm
  • Shaft-L：15.3±0.2mm
  • Wire Length：200±5mm
  • Weight：74±2g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1.06±0.3A
  • No load Speed：8550~9450RPM（900KV）
  • Internal resistance：78.7mΩ±5%
  • Working Voltage：6-8S（3.7-4.2V/S）
  • KV Rating：900KV
  • Propeller：8inch
  • Max Thrust：3kg
  • Flight Weight：4kg

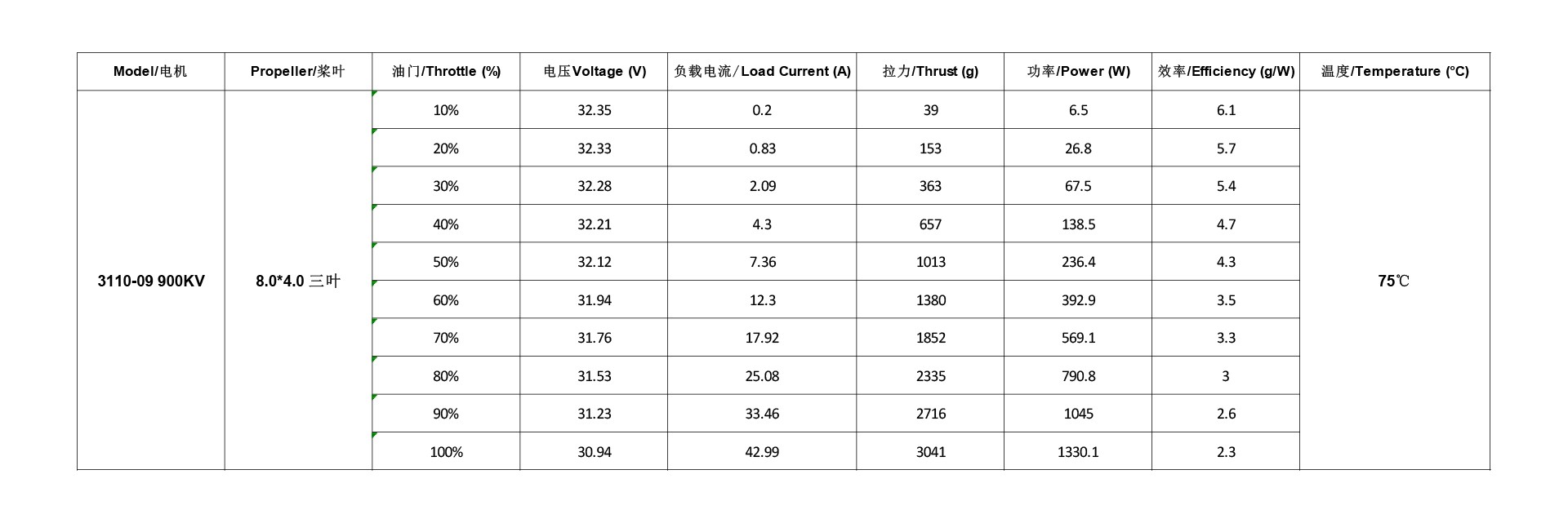

Testing Data
