2812
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

网页版详情页 拷贝.jpg

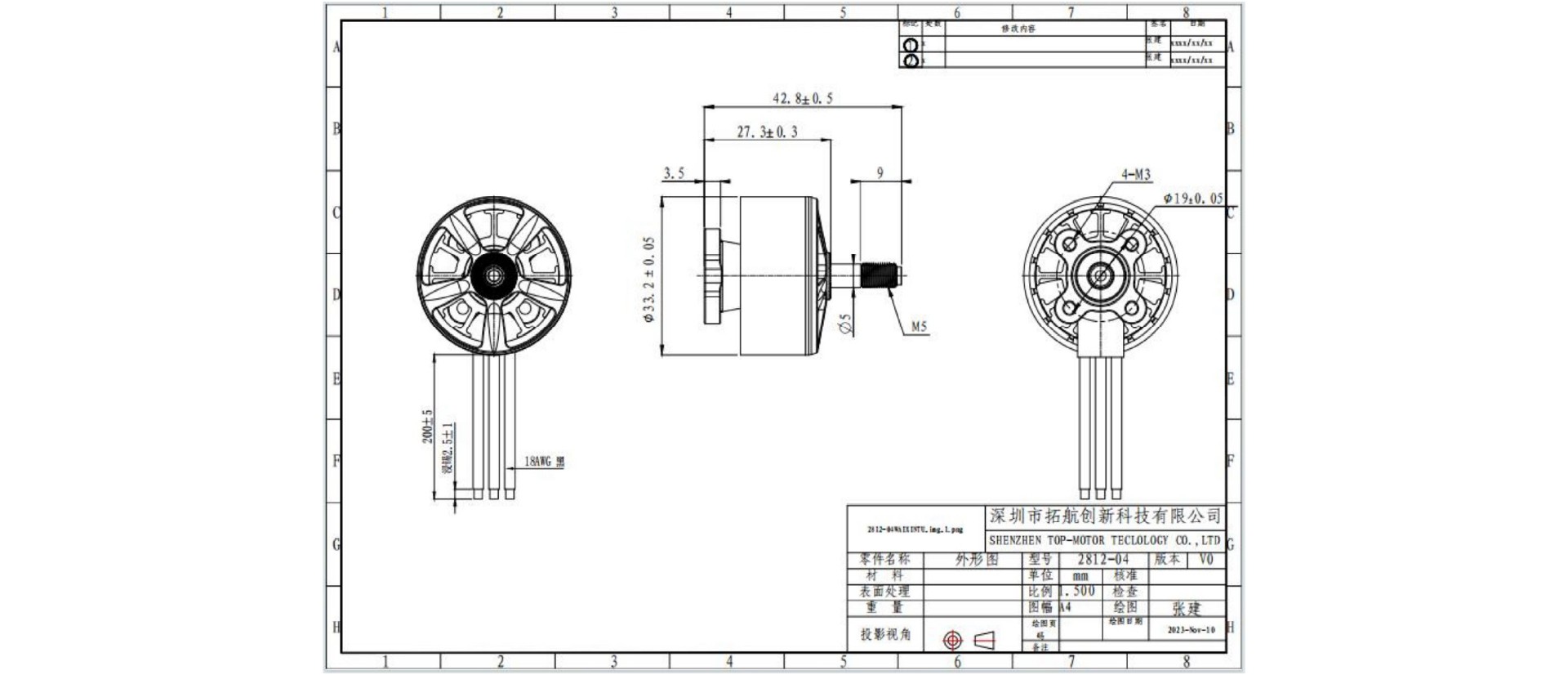

Outline Drawing
Basic Parameters
  • Model : 2812
  • Motor Size：D33.2*27.3mm
  • Shaft-D：Ф5 -0/-0.02mm
  • Shaft-L：15.5±0.2mm
  • Wire Length：200±5mm/260±5mm/260±5mm
  • Weight：74.8±2g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1±0.2A（900/1150KV）/1.6±0.2A（1250KV）
  • No load Speed：8550~9450RPM（900KV) 10925~12075RPM（1150KV） 11875~13125RPM（1250KV）
  • Internal resistance：44.5mΩ±5% / 57mΩ±5% / 43.5mΩ±5%
  • Working Voltage：4-6S（3.7-4.2V/S）
  • KV Rating：900/1150/1250KV
  • Propeller：8/9inch
  • Max Thrust：3.5kg
  • Flight Weight：5kg

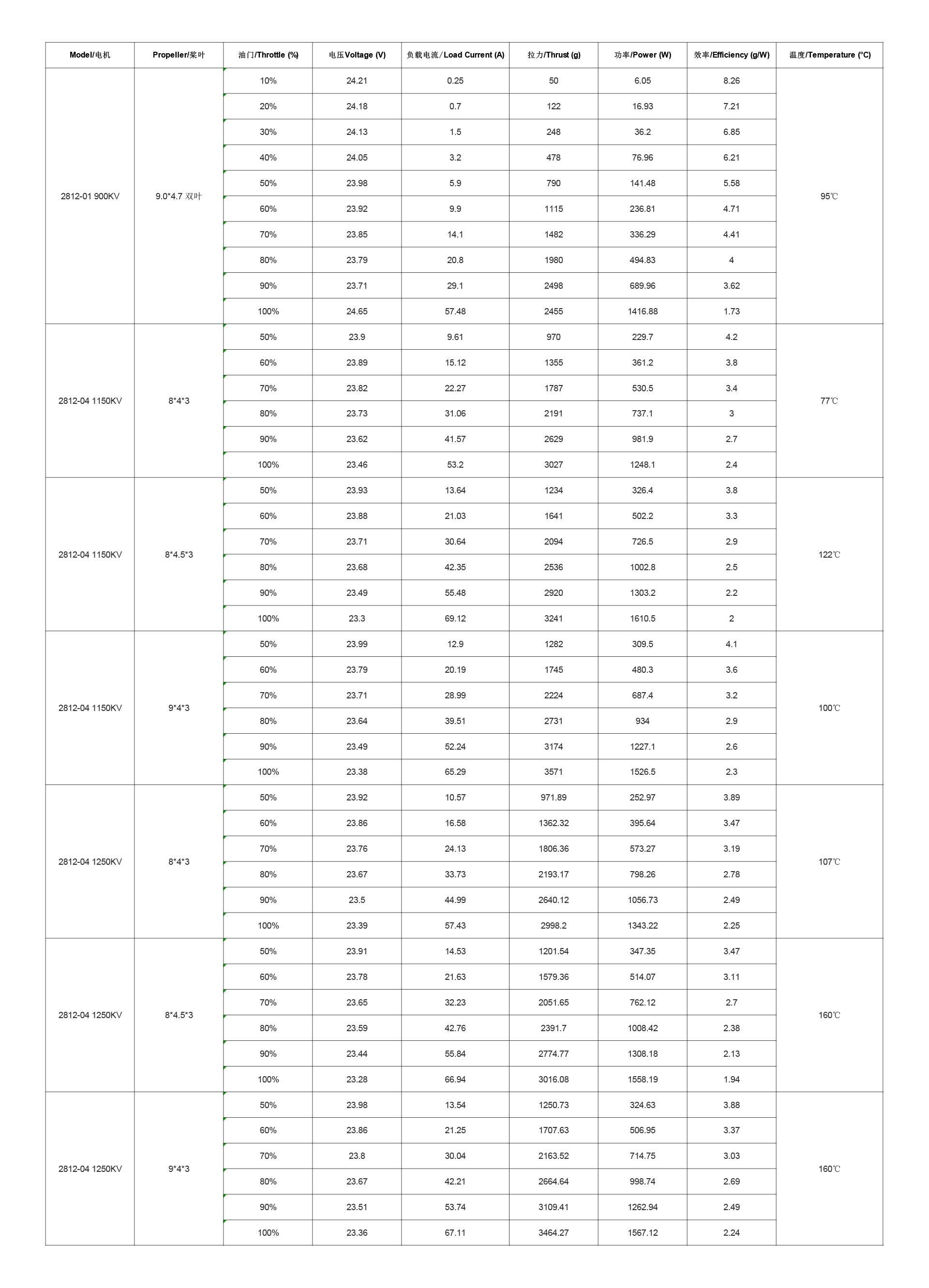

Testing Data
