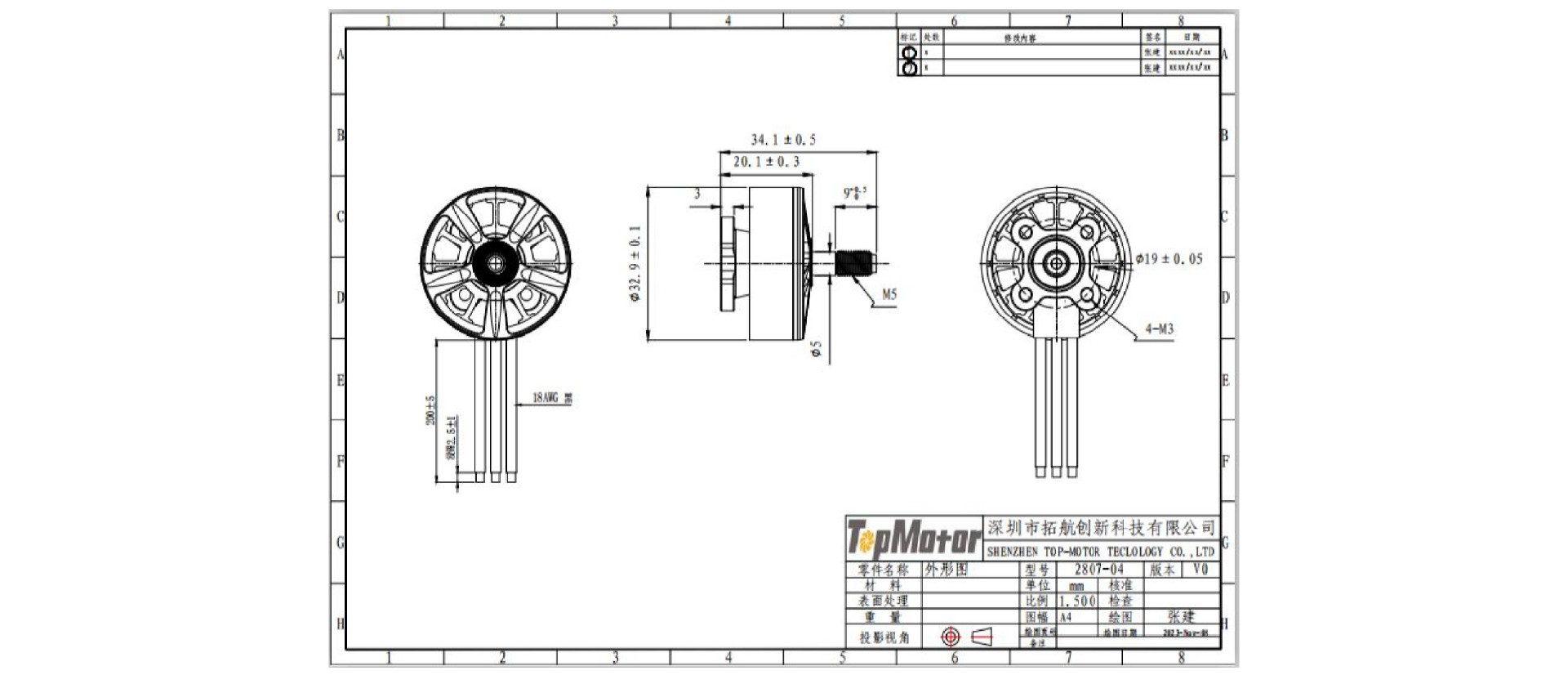

Outline Drawing
Basic Parameters
  • Motor Model : 2807
  • Motor Size：D32.9*20.1mm
  • Shaft-D：Ф5 -0/-0.02mm
  • Shaft-L：14±0.2mm
  • Wire Length：200±5mm
  • Weight：53.4±1.5g（With wire）
Technical Parameters
  • No Load Voltage：10V
  • No load Current：1.2±0.3A
  • No load Speed：11875~13125RPM（1300KV）
  • Internal resistance：72mΩ±5%
  • Working Voltage：4-6S（3.7-4.2V/S）
  • KV Rating：1300KV
  • Propeller：7inch
  • Max Thrust：2.2kg
  • Flight Weight：3kg

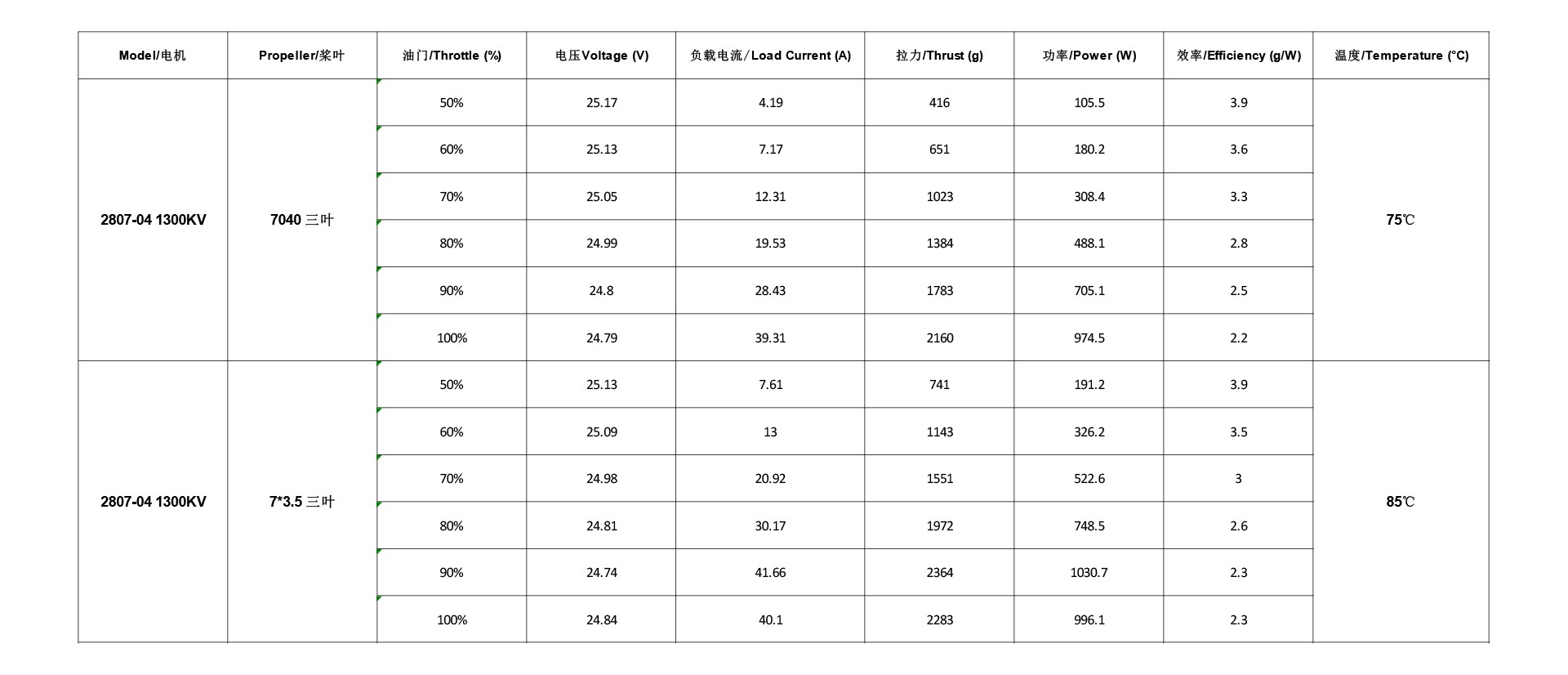

Testing Data
