T14
  • Details
  • Specs
  • Download
  • Video
  • Details
  • Chat Now

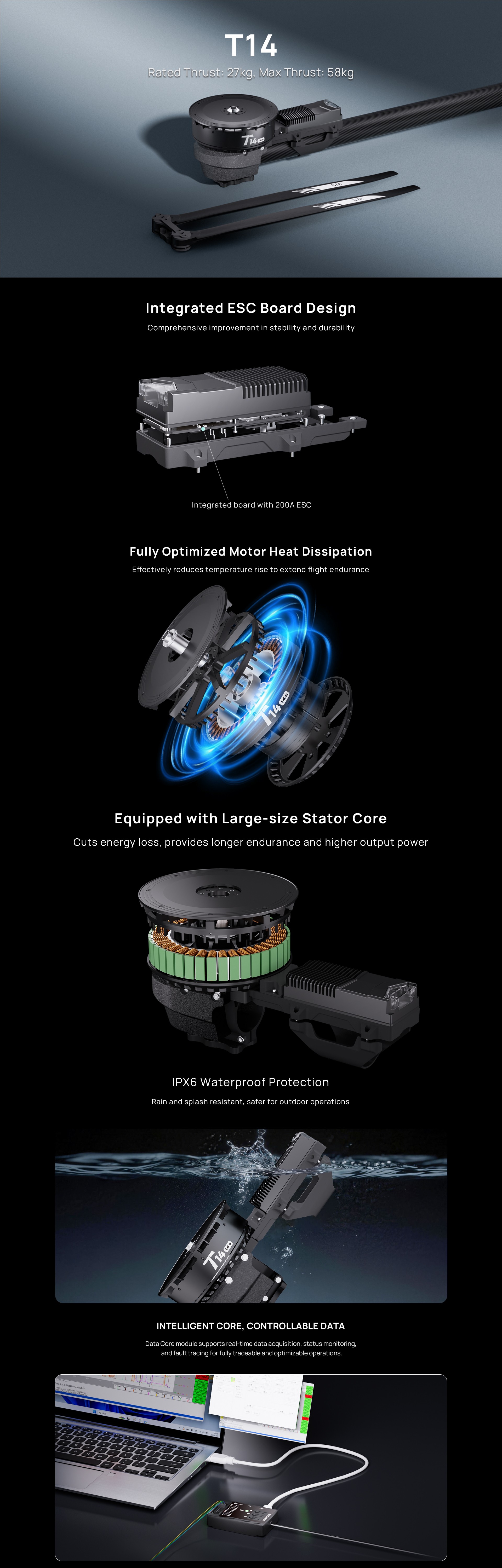

网页版-详情页 拷贝.jpg

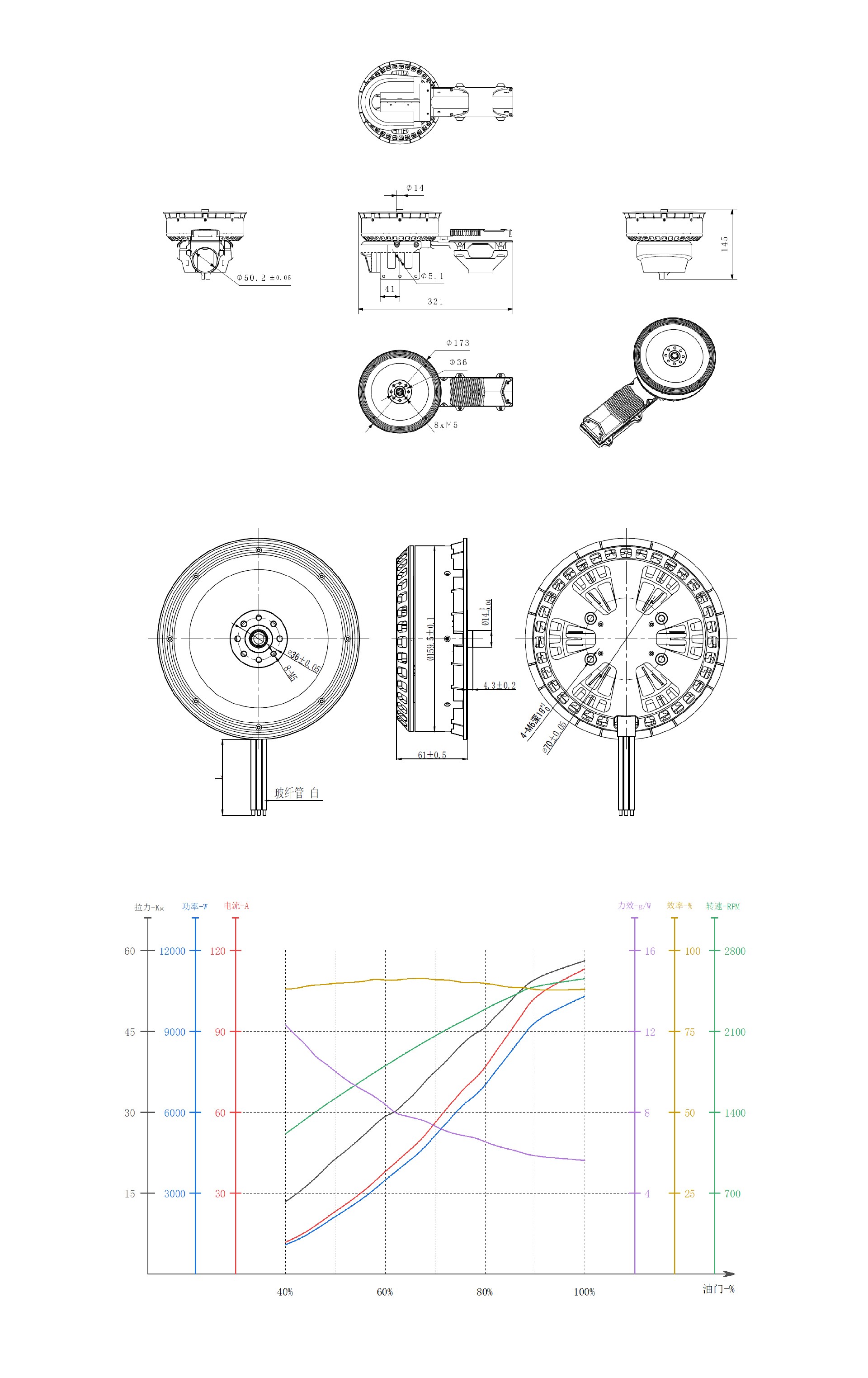

Outline Drawing
Basic Parameters
  • Max Thrust：58kg
  • Recommended Takeoff Weight：27kg
  • Recommended Battery：14/18/24S
  • Total Weight：4400±50g
  • Applicable carbon tube size：50mm
  • Operating Temperature：-20~40°C
  • Ingress Protection：IPX6
  • Rated Input Power：3000W
  • Max Input Power：11.5kW
  • Rated Thrust Efficiency：8.6g/w
Technical Parameters
  • PWM Input Signal Level：3.3V/5V
  • Throttle Pulse Width：1050 ~1950μs
  • Compatible Signal Frequencies：50~500 Hz
  • Max Allowable Voltage：63/81/108V
  • Continuous Current Non-hermetic Ambient Temperature≤ 60℃：65/45/35A
  • Maximum Current Non-hermetic Ambient Temperature≤ 60℃：230/160/120A（10s)
  • Communication interface：CAN
  • KV Rating：60/45/34KV
  • Copper Wire Size：/High Temp Enameled Wire
  • Bearing：Waterproof
  • Throttle Pulse Width：1050 ~1950μs
  • Total Weight：816.25g

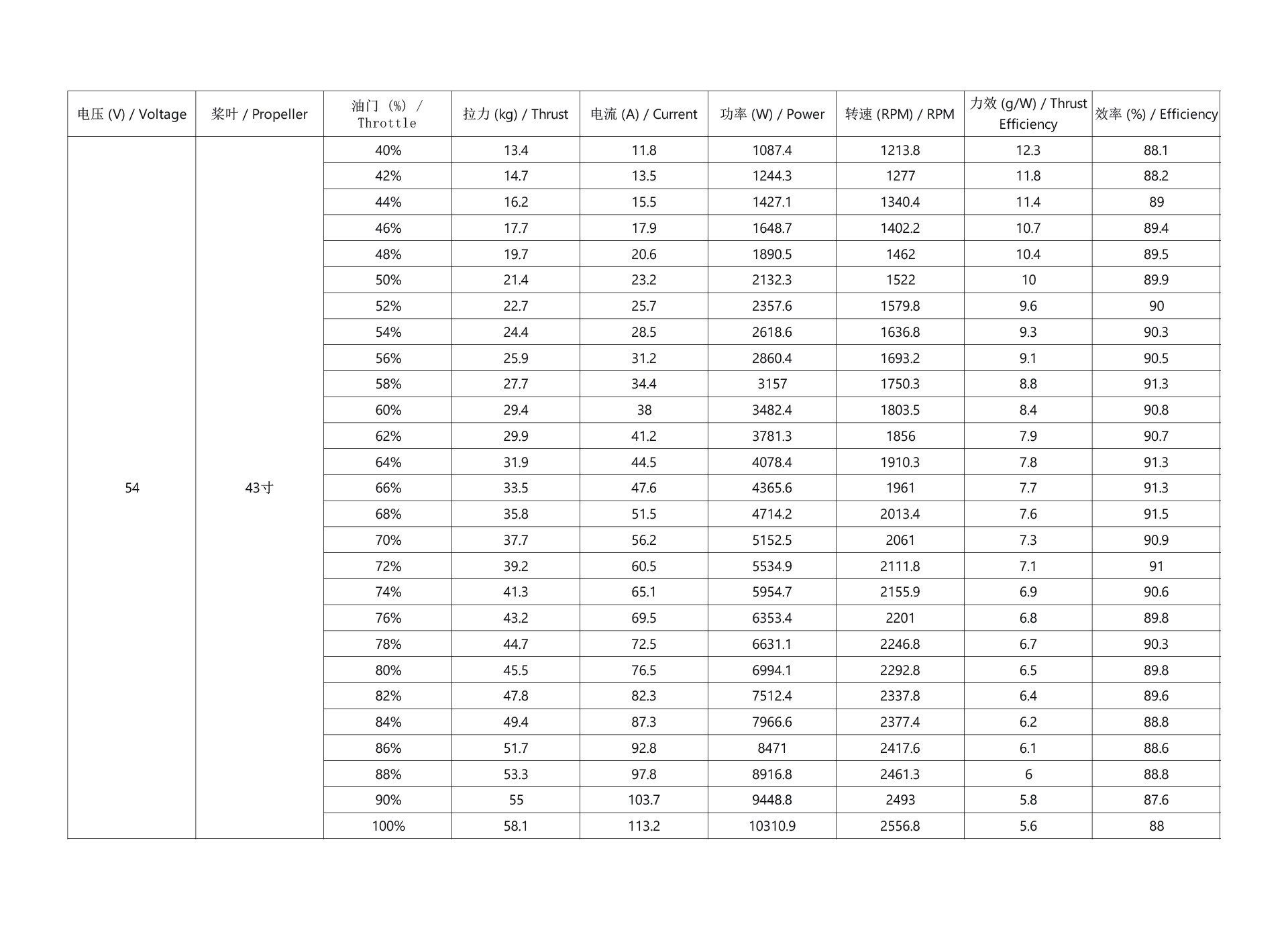

Test Data
